Mobile equipment
Sealed actuation for hatches, steering columns and implement positioning with J1939 diagnostics.
Electrak HD actuator validation cell
Browse Actuator Series70+YearsLinear motion engineering
120CountriesChannel support footprint
25MMotion unitsActuator and bearing programs
380PatentsElectromechanical motion IP
Engineered replacement path

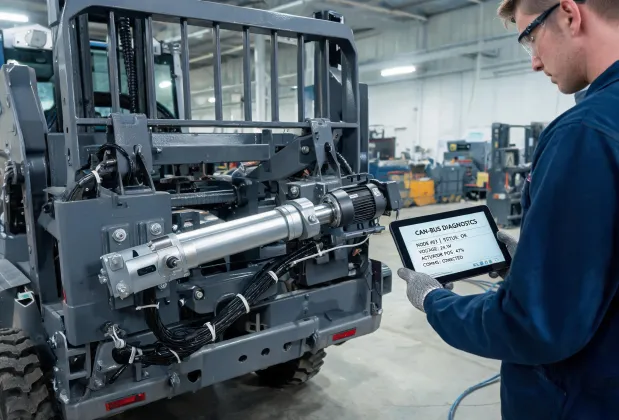

From hydraulic cylinder retrofit to connected actuator platform
Hydraulic-free force without oil loops
Electrak HD style architecture gives OEM teams a cleaner way to deliver 100-2,500 lbf thrust, positional feedback and overload protection while removing hoses, valves and fluid maintenance from the machine envelope.
On-board intelligence for service teams

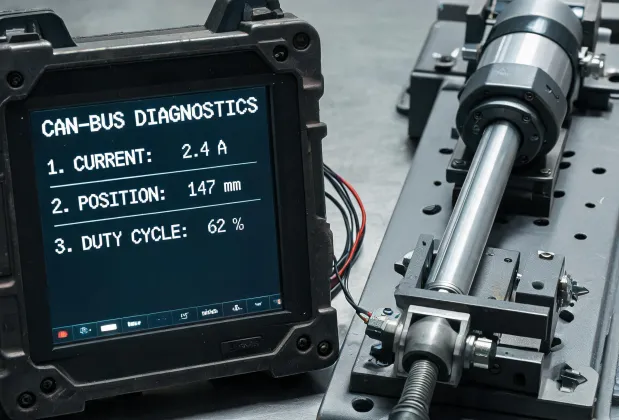

Embedded electronics track current draw, end-of-stroke events and duty cycle so design engineers can size the actuator in eDesigner and field teams can troubleshoot before a line stop becomes expensive.
Linear motion stack from bearing to controller

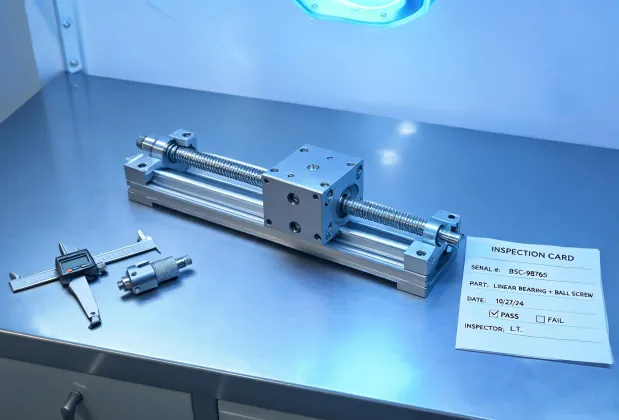

Linear bearings, guided rails, screw drives and electric actuators can be matched around load, stroke, speed and L10 life targets rather than purchased as disconnected catalog parts.
Application fit
Motion systems for machines that move daily

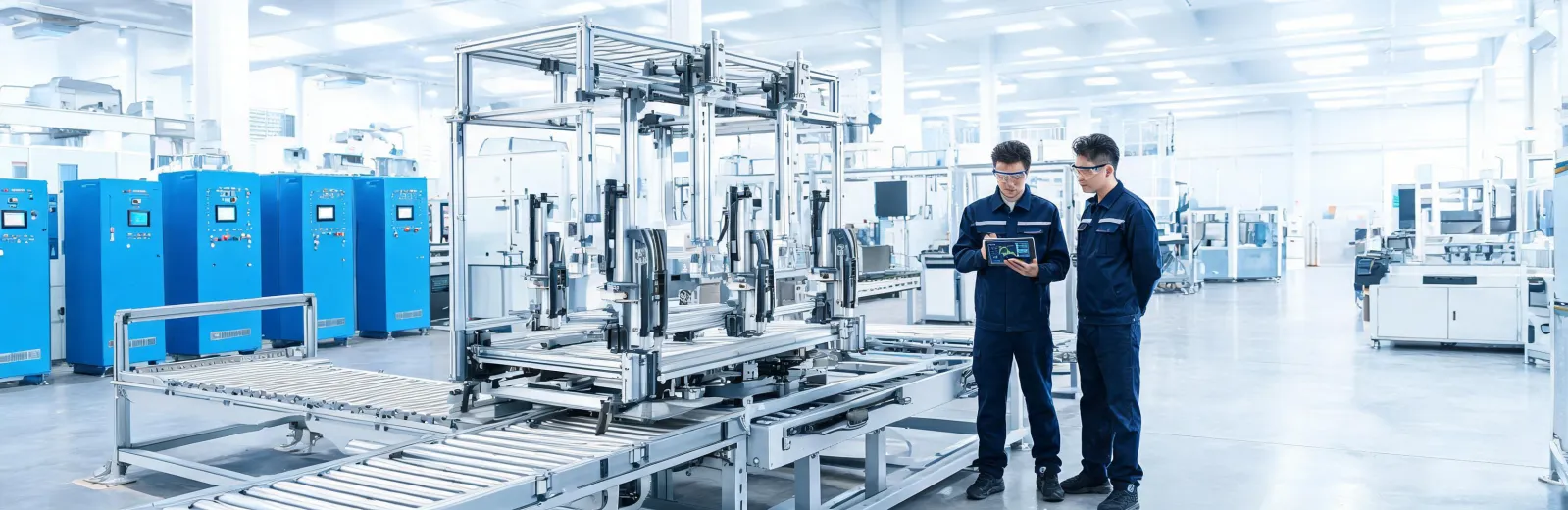

Factory automation
Repeatable push, lift and clamp axes where pneumatic cylinders lack position feedback.
Medical platforms
Quiet electric lifting and positioning with clean control architecture and compact mounting.
Food equipment
Washdown-ready motion that eliminates hydraulic leak risk near packaged product zones.
Engineering downloads
Get the right file before the design review
CAD Library
STEP and 2D envelope models for Electrak HD, Electrak LL and compact actuator families.
Request CAD filesDatasheets
Force, stroke, speed, current draw and mounting tables for actuator selection reviews.
Request datasheetsManuals
Wiring, installation, duty cycle and troubleshooting documents for field teams.
Request manualsCompliance
ISO 9001, ISO 14001, CE Machinery and IP sealing support documents by project.
Request certificates"
Thomson Linear helped our engineering team replace a hydraulic lift axis with a sealed electric actuator package, and the CAN-bus feedback reduced commissioning time by two shifts.
Automation Engineering Manager, European packaging OEM
